Hyproclean SMT Stencil Wiper Rolls

When Swiftmode developed Hyperclean non-woven stencil cleaning fabric for under-stencil wiper rolls, it was at the leading edge of what was possible. But at Swiftmode we do not stand still, because our customers do not stand still. We exist to improve stencil roll performance for our customers and to solve your problems. This is why we have created new generation Hyproclean, using improved polypropylene fabric technology for even better understencil wiping performance at lower overall cost.

Hyproclean SMT Stencil Cleaning Rolls are the new standard in ESD-safe, environmentally-friendly solder residue removal for Ultra Fine Pitch applications.

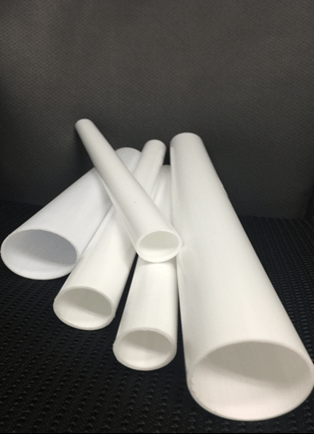

Swiftmode offers recyclable high density polyethylene cores as an option with Hyproclean.

HDPE CORES

We offer an innovative 100% recyclable plastic core option, without the environmental impact of PVC or ABS alternatives.

Button

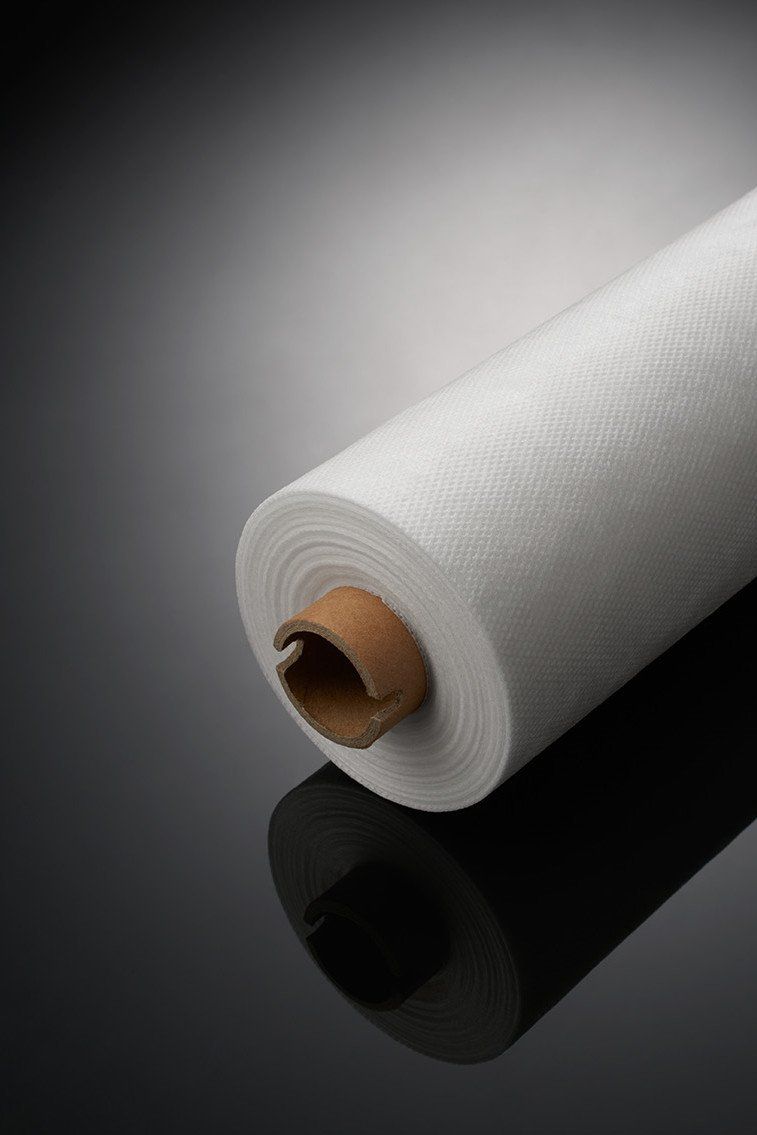

Swiftmode's Hyproclean paper cores, made of virgin kraft paper, are sustainably-sourced, recyclable, strong and do not particulate.

KRAFT PAPER CORES

Our virgin paper cores have advanced adhesive for strength, do not particulate, & are 100% recyclable.

Button

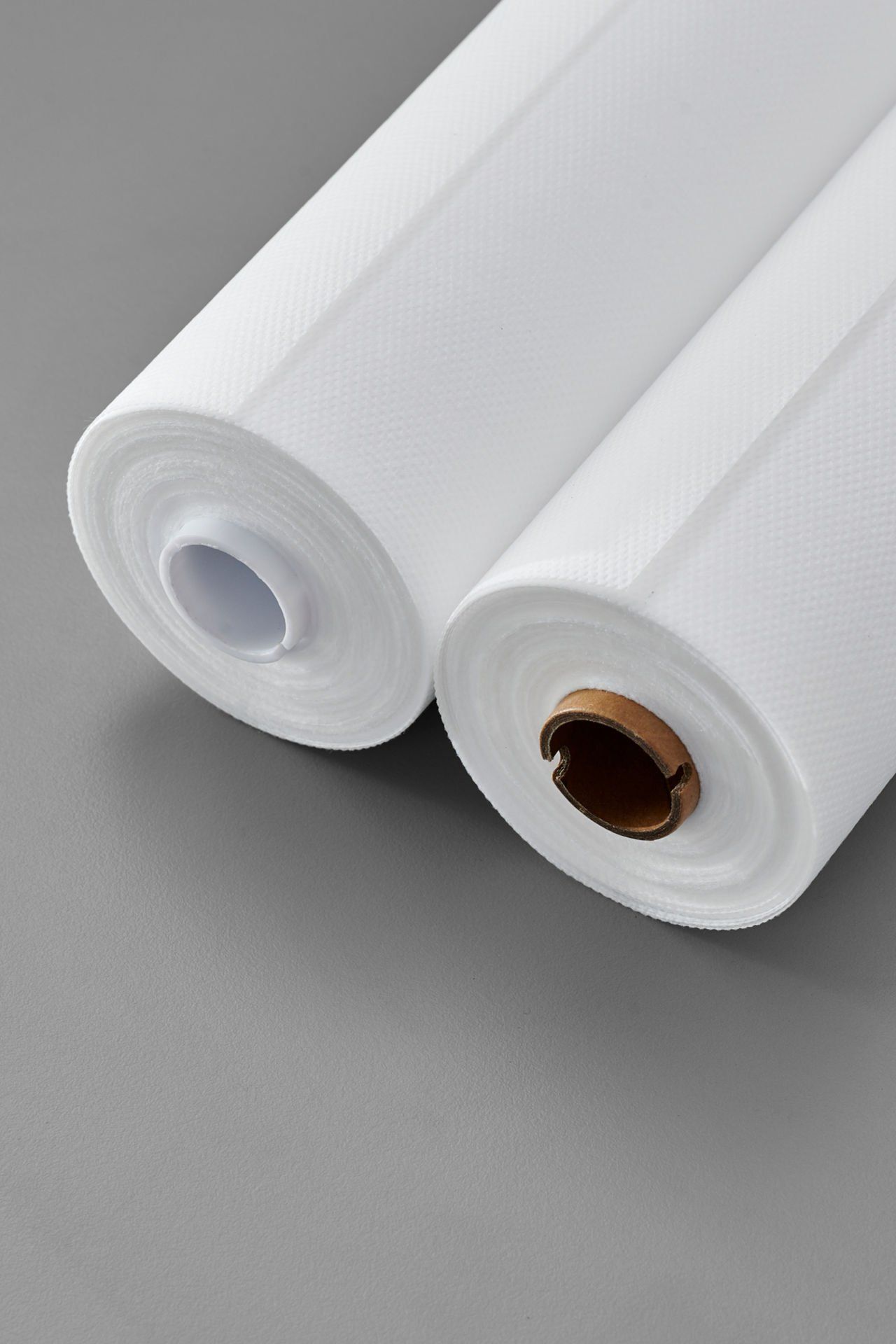

Hyproclean fabric is 100% polypropylene, which has many advantages over competitor products, including recyclability.

100% POLYPROPYLENE

Our PP fabric is chloride-free & fully recyclable in the plastics chain. No cellulose, rayon or polyester, & no lint.

Button

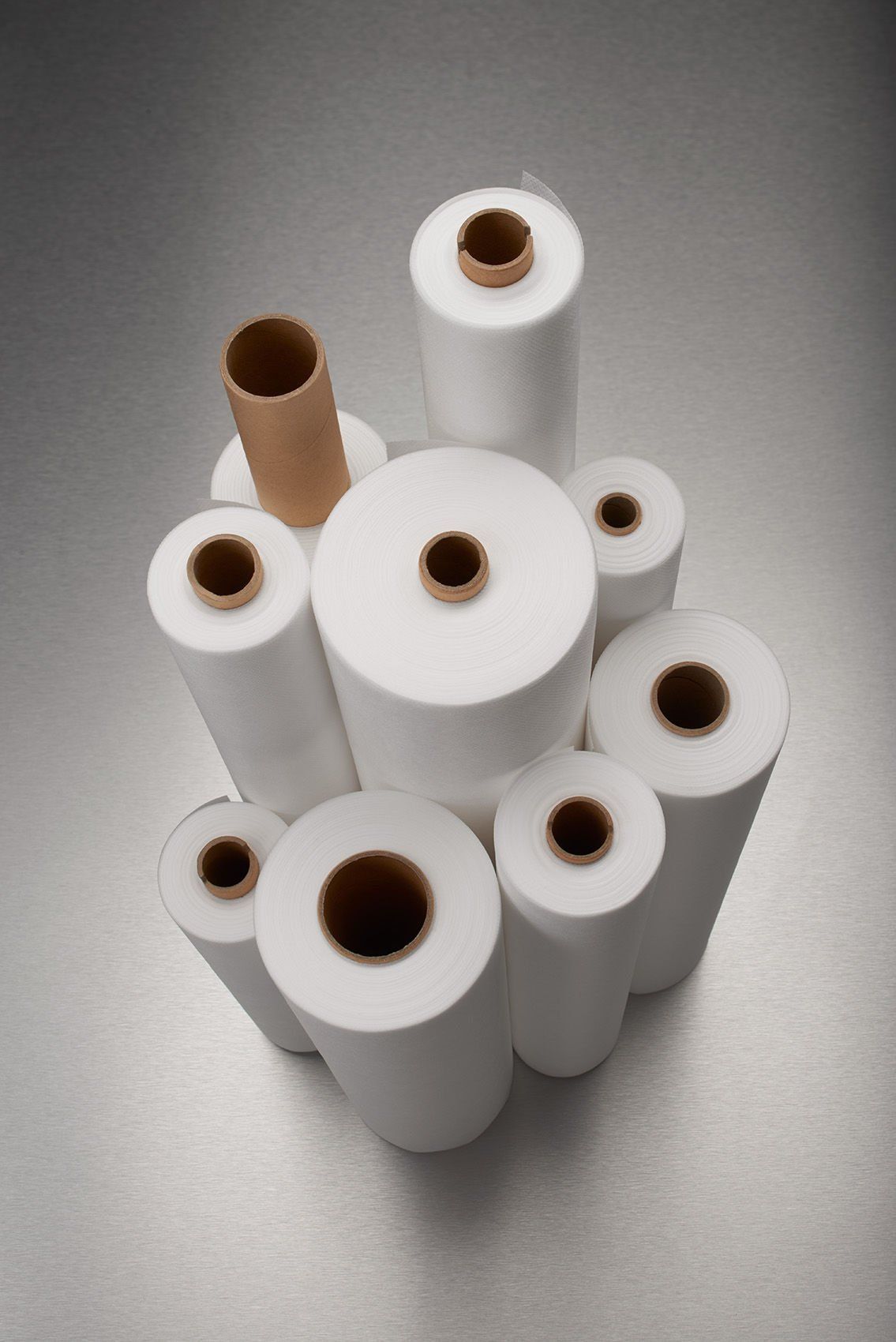

Hyproclean cleans stencils better and for longer than other wiper rolls, leading to less machine downtime for you.

SUPERIOR CLEANING

The best vacuum air flow, high tenacity without swelling, and longer machine-specific roll lengths.

Button
Hyproclean stencil rolls are ECO-friendly and highly cost-effective.

So often, products that have a lower environmental impact are more expensive, however that does not apply to Swiftmode's uniquely 100% recyclable Hyproclean Under-Stencil Wiper Rolls. You can expect top cleaning performance, without compromises, as tested on 0.2 mm BGA, whilst typically saving 33% on water-based solvent with a yield of 99%.

Why Swiftmode's Hyproclean Stencil Rolls are the best understencil wiping solution on the market for SMT stencil printers

  • Up to 40% more prints per cleaning cycle. The PP Fibres are random not unidirectional, giving better cleaning performance and trapping solder balls (unlike paper products,) so there is no potential for contamination when the solder paste dries.
  • Hyproclean has the best vacuum air flow of any stencil roll: a key metric in achieving superior cleaning efficacy, particularly in Ultra Fine Pitch applications.
  • Hyproclean excels in small aperture / high aperture density applications.
  • Certified compatible with both IPA and water-based solvents.
  • Solvent spreads rapidly across the surface in a fast capillary action, putting the solvent where it is needed for effective under-stencil cleaning and staying on the outside of the fibres: meaning less solvent is needed, reducing costs by around 30%.
  • Hydrophilic polypropylene fibres ensure no swelling, and no change in tensile strength, when liquids are absorbed. Hyproclean is the same wet or dry: meaning no machine jams.
  • Hyproclean does not contain any cellulose or rayon so there are no loose fibres (known as lint) to block solvent spray jets. Hyproclean is zero linting.
  • Hyproclean is non-abrasive, for longer stencil life.
  • Hyproclean is ESD-safe in accordance with ANSI ESD STM S11.11. Sufficient charge cannot be generated to cause IPA to catch fire.
  • Longer rolls, fully compatible with each printer, mean less machine downtime and increased product value.
  • RoHS compatible.
  • Because Hyproclean is made of thermally-bonded polypropylene and is chloride-free, the fabric can be recycled in the normal plastics chain, whilst our high-tech virgin kraft paper cores can similarly be recycled with ease along with general paper waste in the paper chain. Swiftmode have worked hard to create the first 100% recyclable stencil rolls in the market. This remains the case if your application requires plastic cores since, with an extrusion partner, we have developed an HDPE core that has a low environmental impact, can be easily recycled with low energy and has no toxic additives. Similar work with our paper mill partner has resulted in a paper core which is far removed from the soft, ply bond cardboard used by other manufacturers. Our use of virgin kraft paper from FSC-certified sustainable sources to eliminate any particulation, together with a technically advanced adhesive for strength much closer to that of a plastic core, has resulted in excellent feedback from customers.
Hyproclean customers can confidently push forward in lowering their environmental impact without compromising either profit or performance.

Hyproclean Material Product Data

Material Construction:    100% Polypropylene hydrophilic fibres, easily recyclable in the ordinary plastics chain. Absolutely no rayon, polyester or cellulose. Hyproclean is certified chloride-free.


Bonding System:    Thermal bond. Absolutely no chemical binders.


Fabric weight:    40g per m² ± 5%  (FZ/T60003)

Fabric Width:    Tolerance ± 3mm


Tensile Strength:    Unaffected, wet or dry

≥ 90N per 50mm MD  (FZ/T64012)

≥ 70N per 50mm TD  (FZ/T64012)


Absorption Capacity:    540%  (FZ/T64012)


Surface Resistance:    ≤ 10^11 Ohms  (ANSI ESD STM S11.11)

Charge Generation:    < 50 Volts

Hyproclean Roll Product Data

Roll Sizes:    Rolls are available to fit printers made by DEK, MPM, Panasonic, Yamaha, Fuji, Minami, Ekra, Samsung, Hitachi, Speedprint, SJ Innotech, etc., as well as in custom sizes.


Roll Length:    Optimized to the maximum outside diameter each stencil printer model can accommodate, often allowing more metres per roll and hence less machine downtime for roll changes.


Cores Tolerance:    Length ± 2mm, Internal Diameter ± 0.2mm


High-Tech Cores:    Our standard cores are made with virgin kraft papers, certified sustainably sourced by the Forest Stewardship Council, FSC License Code: FSC-C021574. We can also supply High Density Polyethylene cores which have the lowest environmental impact of any other plastic.


Fabric Fixing System:    Double-sided adhesive tape

Hyproclean Packaging Product Data

Identification:    Each roll has a label, with a final inspection certificate in each carton for traceability.


Contamination & Tribocharging:    Each roll is heat-sealed in a 100% recyclable anti-static blue-tinted LDPE bag.

Swiftmode's Hyproclean paper cores are FSC-certified sustainably sourced, and easily recycled, lowering our customers' environmental impact.
